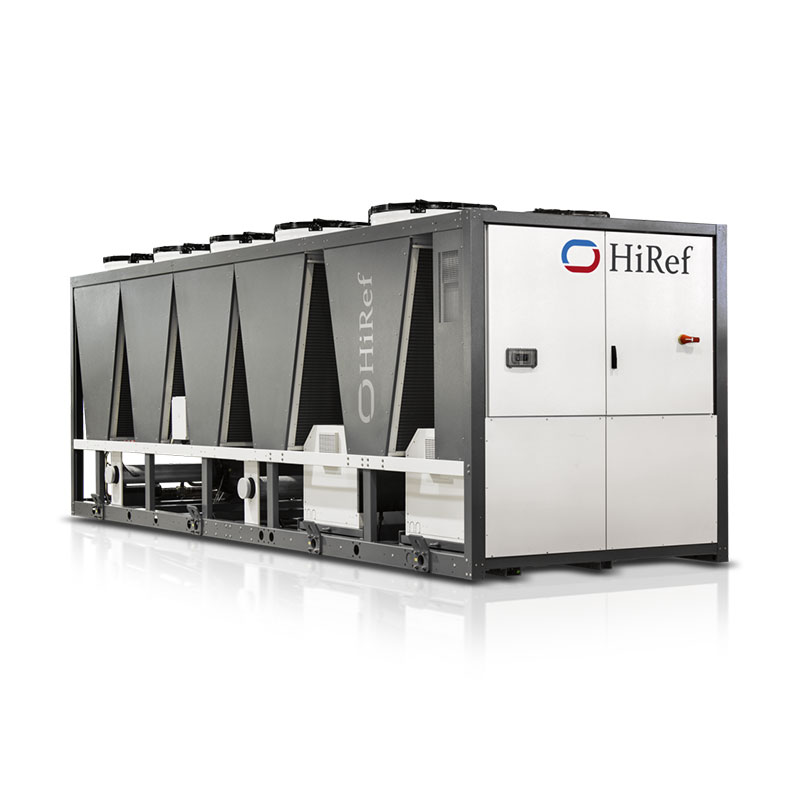

TVX

Range: 384÷1410 kW

TVX sets a new standard for air cooled chillers, designed to ensure that processes are both energy-efficient and environment-friendly. Low environmental impact has been achieved by using new HFO refrigerants with low GWP (Global Warming Potential), while higher efficiency/bulk ratios are attained thanks to the special V-configuration of the heat exchange coils and their sizing, the largest among the chillers currently available on the market. The free-cooling version – where heat exchange surface areas are double the market average – ensure outstanding performance. The adoption of screw compressors that are modulated via slide valve or inverter, the use of electronically controlled expansion valves, generously-sized plate heat exchangers, software-managed integrated control of fans and circulation pumps are all key features that give the TVX range outstanding load modulation capacity and high efficiency at partial loads. The compressor hoods drastically reduce noise thanks to the use of special soundabsorbing materials. Moreover, slide rails allow them to be removed effortlessly, making all maintenance tasks much easier. The compressors can also be removed by hooking from above and lifting with a crane. Configuration with very deep modular ‘V’ coils provides an extensive heat exchange surface area and therefore excellent thermal efficiency in relation to the unit footprint. The Free-Cooling version features heat exchangers sized in such a way as to allow a Total Free-Cooling Temperature (TFT) of 10 °C* (Data Center conditions with chilled water 19/25 °C). TVX air chillers cooled use the new HFO refrigerant with low GWP (GWPR1234ze=6 ), part of a wider Green Technology approach. (Also available in a version with R134a refrigerant). TECHNICAL CHARACTERISTICS Dual screw compressors, with slide valve or with inverter on one or both compressors Electronically controlled expansion valve Electronically commutated EC fans HI-NODE® supervision: HiRef system for integrated management and control of Data Center air conditioning by interfacing with all the cooling capacity generation and distribution units Monitoring and reduction of maximum absorbed power Second set point, on utility side, able to be activated from external input Gas valves on compressor discharge Outdoor temperature probe for set-point compensation Oil level check in compressor
